Manual Boom Gate
The ZoneGuard™ Manual Boom Gate was developed in 2004 by Access Technologies in response to requests from a number of heavy industrial companies and mine sites wanting a low-cost means of preventing access to certain high risk areas of their sites.
Since this time ZoneGuard™ has also proven ideal for use in:
- Manufacturing and processing plants.
- Military installations.
- Steel warehousing and distribution facilities.
- Quarries and mine sites.
- Loading docks and loading bays.
- Waste processing and recycling facilities.
- Warehouses and workshops.

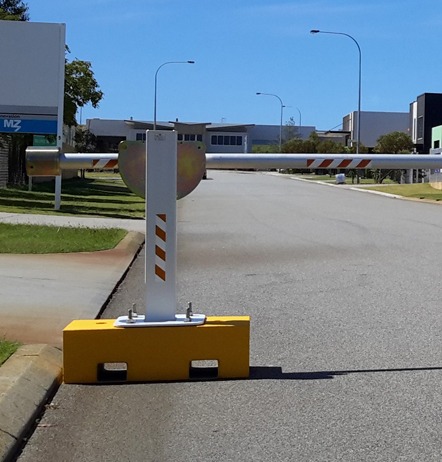

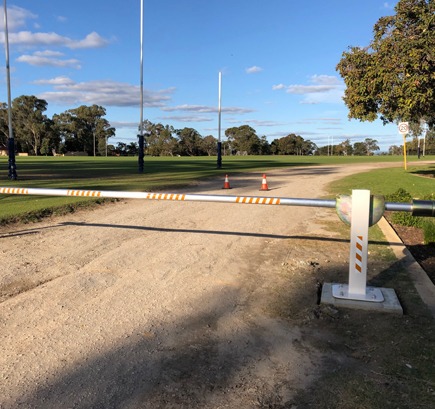

ZoneGuard™ is suitable for direct mounting to a structural column, or alternatively can be floor mounted using the supplied mounting post assembly. The product is available with a 4.5-metre boom arm length as standard (Post to tip, 5.3-metres overall length), and other boom arm lengths can be manufactured to order. In addition, the product can be powder coated to your choice of colour on request.
Boom Arm Length: 5-metres standard (Other lengths to order).
Boom Arm Material: 80mm O.D. Aluminium tube, 3mm wall.
Spindle Bearing: 80mm Deep Groove Ball Bearing.
End Stops: Cam action onto urethane bush.
Locking mechanism: Spring loaded, stainless steel pin.
Shipping Weight: Post 50Kg, Mechanism and Boom Arm 40Kg.
Mounting Post: 1250mm high x 150mm x 100mm.
Base Plate: 10mm Mild Steel.
Mounting Holes: 22mm Diameter Holes to suit 20mm Chemical Anchors
